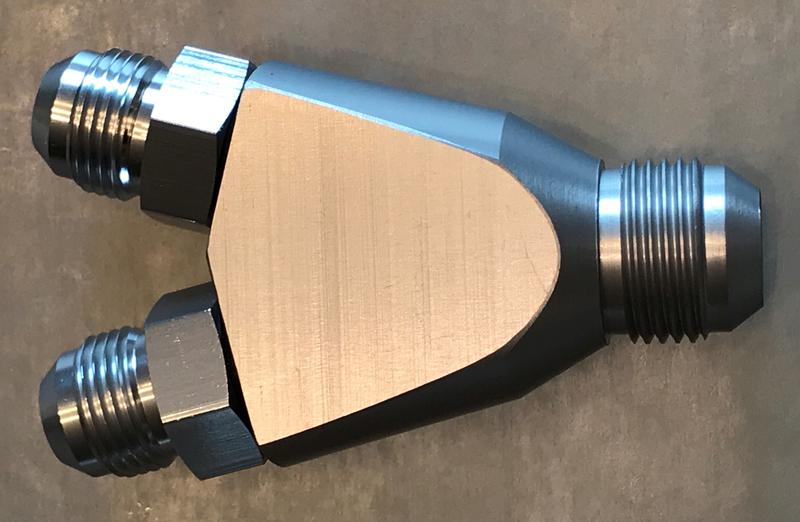

Fluid "Y" Manifold

** Modular Design **

(CNC Machined, 6061-T6 Aluminum.)

(Clear Coat Anodized for Corrosion Protection.)

One "Fixed" Male -12 AN Port

and

Two "Interchangeable" Female -10 AN O-Ring Boss Ports.

** Fittings Sold Separately - Listed Below **

Part # PAS12YMF

$45.89 ea.

***Excellent for Plumbing Custom Coolant and Oil Lines. ***

Design Features :

1) The Two -10 AN Ports can Accept -10 Fittings, -8 Fittings or -6 Fittings.

2) Being of a Modular Design, the User can Mix and Match Fitting Sizes as Desired.

3) The Internal Passages were Designed with Tight Transition Angles for Smoother, Less Turbulent Flow.

4) The Direction of Flow doesn't Matter. This "Y" Manifold Flows Very Well in Either Direction.

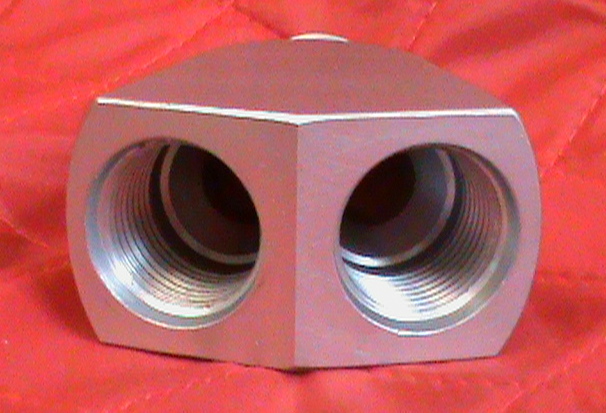

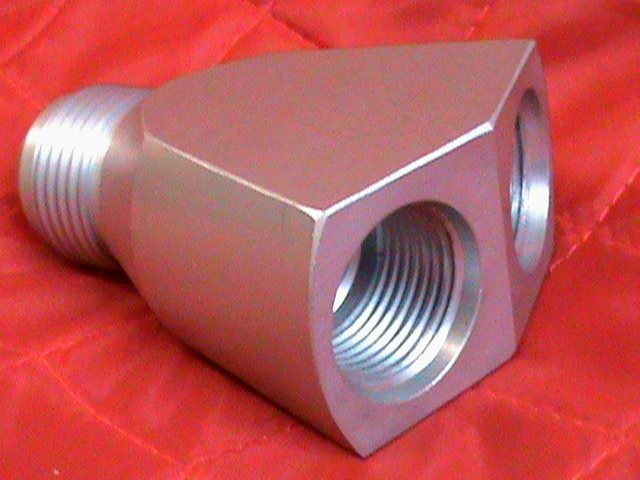

Central Water - Coolant Manifold

** Centrally Located "Under Intake" Design **

(CNC Machined, 6061-T6 Aluminum.)

(Clear Coat Anodized for Corrosion Protection.)

Design Features :

1) Small Overall Size for Ease of Installation under the Intake Manifold.

2) Plumb One Coolant Outlet Hose from the Rear of the Cylinder Head and One Coolant Outlet Hose from the Center of the Cylinder Head to the Inlet Ports and Plumb the Outlet Hose to the Coolant/Water Outlet Manifold # WOM-1.

(Or Equivalent)

3) Uses Aeroquip Socketless (Or Equivalent Push Lock) Hoses on the -8 (1/2") Inlet and -10 (5/8") Outlet Ports to Eliminate the need for Multiple AN Style Hose Fittings.

4) Internal "Intersecting Coolant Passages" are Angled to Assist Coolant Flow Through the Manifold by Reducing Internal Turbulence.

Technical Specifications:

** Cylinder Head "Coolant Outlet Hose" Plumbing.**

-6 AN Inlet Fitting for the Center Coolant Outlet Hose.

-8 (1/2") Barbed Inlet Fitting for the Rear Coolant Outlet Hose.

-10 (5/8") Outlet Hose for the Coolant Hose that Plumbs into the Coolant/Water Outlet Manifold # WOM-1.

** One Manifold Required Per Cylinder Head.**

Part # PAS01

$46.95 ea.

(-6 AN Fitting Sold Separately.)

Aluminum

AN Adapter Fittings

==> The 1/2" NPT Fittings Fit our Coolant Passage Fittings & our Water Outlet Manifold.

(Part # PCFA-SS. & Part # WOM-1.)

==> The 3/4" NPT Fittings Fit the Coolant Passages in Edelbrock's Heads, Kaufmann Racing's Heads, All-Pontiac's Heads, CV-1 Heads and possibly others. These are hard to find in 3/4" NPT Male x -8 AN Male in Aluminum.

Aeroquip

Part # FCE2008

( 1/2"NPT Male x -8AN Male.)

$7.99 ea.

.......Straight Fittings.......

(Aeroquip Brand)

....... 90-Degree Fittings.......

(Aeroquip Brand)

Nickel Plated - Silver

Anodized Blue

Anodized Black

Aeroquip

Part # FCE2038

( 1/2"NPT Male x -8AN Male.)

$23.89 ea.

Aeroquip

Part # FCM2038

( 1/2"NPT Male x -8AN Male.)

$14.89 ea.

Aeroquip

Part # FCM5038

( 1/2"NPT Male x -8AN Male.)

$16.89

Aeroquip

Part # FCE2039

( 1/2"NPT Male x -10AN Male.)

$25.89 ea.

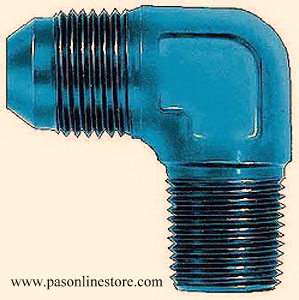

Aeroquip

Part # FCM2039

( 1/2"NPT Male x -10AN Male.)

$15.89 ea.

Aeroquip

Part # FCM5039

( 1/2"NPT Male x -10AN Male.)

$15.89 ea.

Nickel Plated - Silver

Anodized Blue

Anodized Black

.......Straight Fittings.......

(RedHorse Brand)

Aeroquip

Part # FCE2009

( 1/2"NPT Male x -10AN Male.)

$12.99 ea.

Aeroquip

Part # FCM2008

( 1/2"NPT Male x -8AN Male.)

$4.99 ea.

Aeroquip

Part # FCM2009

( 1/2"NPT Male x -10AN Male.)

$4.99 ea.

Aeroquip

Part # FCM5008

( 1/2"NPT Male x -8AN Male.)

$4.99 ea.

Aeroquip

Part # FCM5009

( 1/2"NPT Male x -10AN Male.)

$4.99 ea.

Anodized Blue

Anodized Black

Clear Coat Anodized

RedHorse

Part # 816-08-12-1

( 3/4"NPT Male x -8AN Male.)

$6.69 ea.

RedHorse

Part # 816-10-12-1

( 3/4"NPT Male x -10AN Male.)

$6.99 ea.

RedHorse

Part # 816-08-12-2

( 3/4"NPT Male x -8AN Male.)

$7.69 ea.

RedHorse

Part # 816-10-12-2

( 3/4"NPT Male x -10AN Male.)

$8.29 ea.

RedHorse

Part # 816-08-12-5

( 3/4"NPT Male x -8AN Male.)

$7.69 ea.

RedHorse

Part # 816-10-12-5

( 3/4"NPT Male x -10AN Male.)

$8.29 ea.

RedHorse

Part # 816-08-08-1

( 1/2"NPT Male x -8AN Male.)

$5.69 ea.

RedHorse

Part # 816-10-08-1

( 1/2"NPT Male x -10AN Male.)

$5.69 ea.

RedHorse

Part # 816-08-08-2

( 1/2"NPT Male x -8AN Male.)

$6.59 ea.

RedHorse

Part # 816-10-08-2

( 1/2"NPT Male x -10AN Male.)

$6.59 ea.

RedHorse

Part # 816-08-08-5

( 1/2"NPT Male x -8AN Male.)

$6.59 ea.

RedHorse

Part # 816-10-08-5

( 1/2"NPT Male x -10AN Male.)

$6.59 ea.

Text : (704) 685-0397

E - Mail : lmsracer455@outlook.com

Questions or Comments :

Text or E-Mail at any time and we'll respond A.S.A.P.

Online "Shopping Cart" Orders

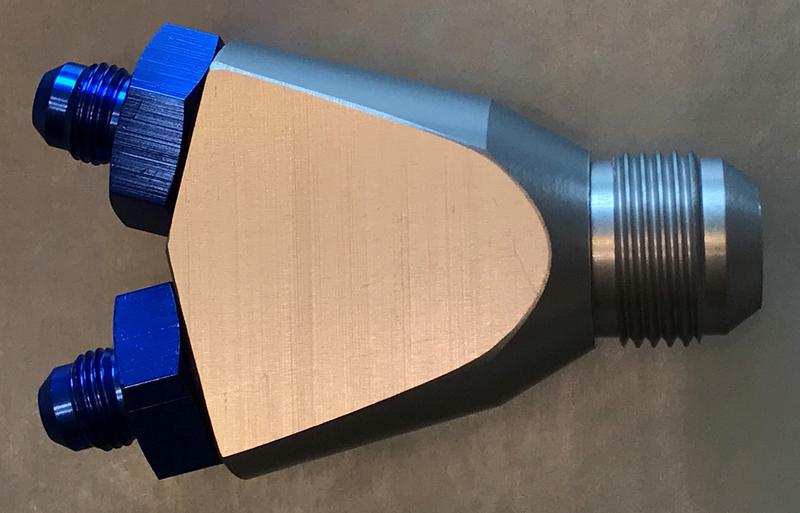

-6AN x -6AN x -12AN

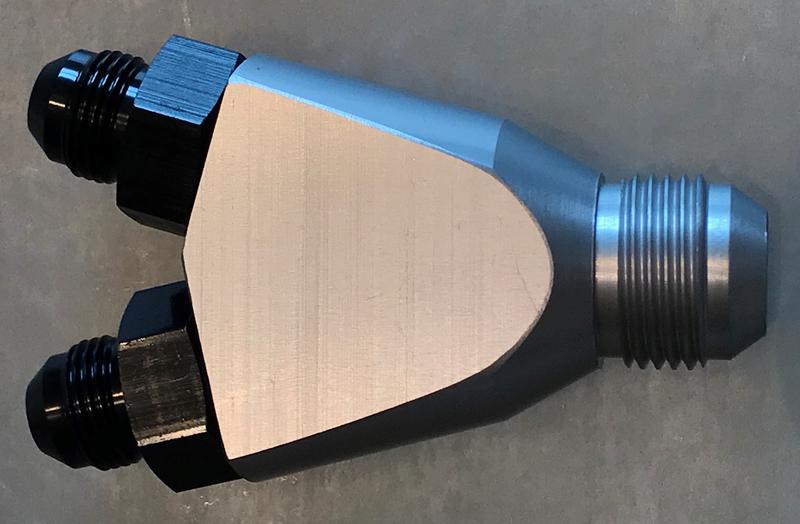

-8AN x -8AN x -12AN

-10AN x -10AN x -12AN

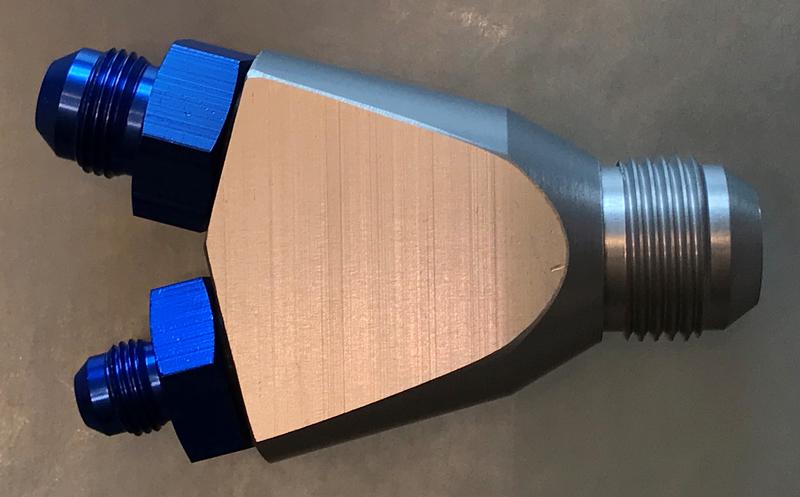

-6AN x -8AN x -12AN

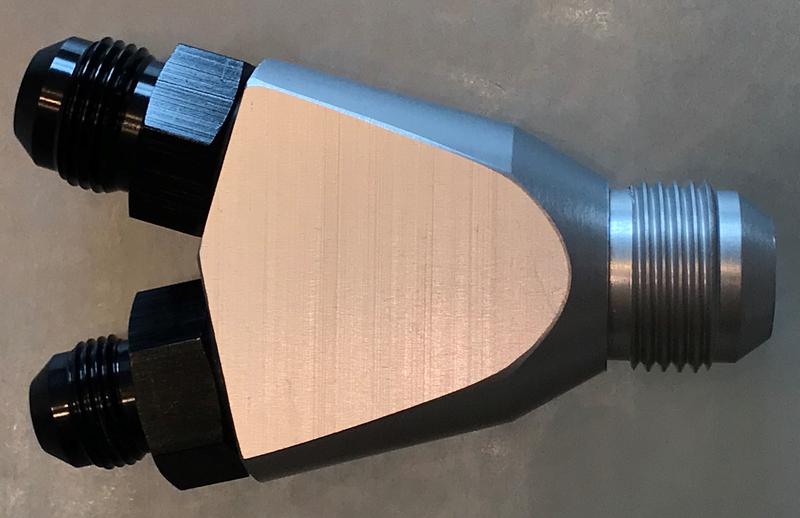

-8AN x -10AN x -12AN

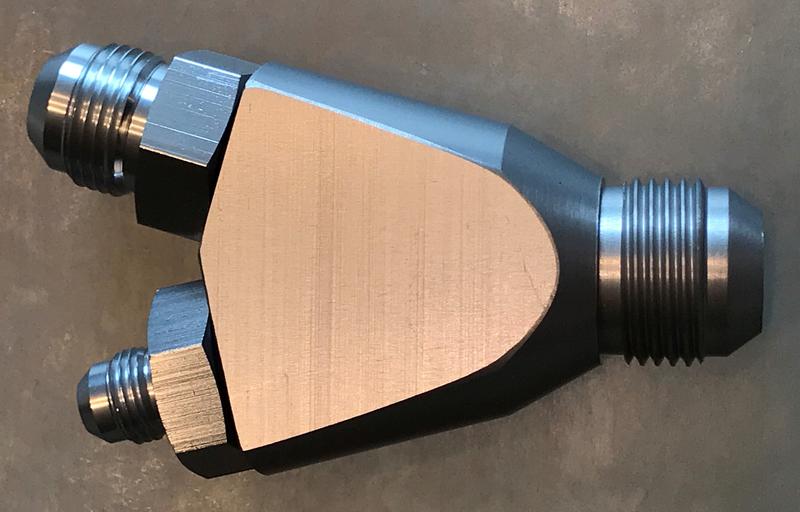

-6AN x -10AN x -12AN

==>> Various Possible Configurations and Color Options <<==

Blue Anodized

Black Anodized

Silver Anodized

-10AN ORB Fittings

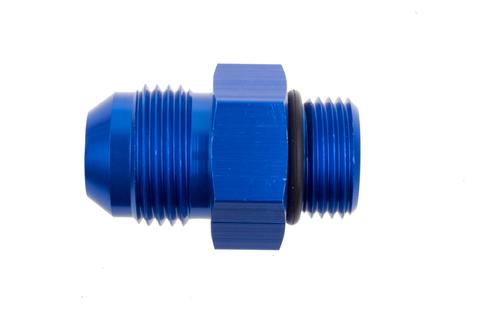

Blue -6AN Male x -10AN ORB Male

Part # 920-06-10-1

$12.89 ea.

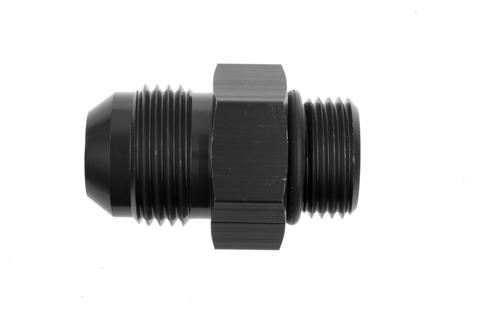

Black -6AN Male x -10AN ORB Male

Part # 920-06-10-2

$14.89 ea.

Silver -6AN Male x -10AN ORB Male

Part # 920-06-10-5

$14.89 ea.

Blue -8AN Male x -10AN ORB Male

Part # 920-08-10-1

$13.89 ea.

Black -8AN Male x -10AN ORB Male

Part # 920-08-10-2

$15.89 ea.

Silver -8AN Male x -10AN ORB Male

Part # 920-08-10-5

$15.89 ea.

Blue -10AN Male x -10AN ORB Male

Part # 920-10-10-1

$16.89 ea.

Black -10AN Male x -10AN ORB Male

Part # 920-10-10-2

$18.89 ea.

Silver -10AN Male x -10AN ORB Male

Part # 920-10-10-5

$18.89 ea.

Blue Anodized

Black Anodized

Silver Anodized

Part # 920-06-06-1

$10.89 ea.

Part # 920-06-06-2

$11.89 ea.

Part # 920-06-06-5

$11.89 ea.

^^^^^^ Click on the Thumbnails ^^^^^^
